| Isuzu Truck Mounted Crane | ||
| NO. | SPECIFICATION | PARAMETER |
| 4×2 | ||
| 1 | Model Series | FTR |
| 2 | Vehicle Model | QL5180JSQAJGHJ |
| 3 | GVW(kg) | 18000 |
| 4 | Curb Weight(kg) | 12100,11280 |
| 5 | Axle Loads(kg) | 6500/11500 |
| 6 | Cabin | 3 |
| 7 | Overall Dimension(mm) | 9000×2530×3700 |
| 8 | Wheelbase(mm) | 5550 |
| 9 | Engine | 4HK1-TCG60 |
| 10 | Engine Output (kW(PS)) | 151kW(205PS) |
| 11 | Displacement(L) | 5.193 |
| 12 | Emission Standard | Euro 6 |
| 13 | Braking Mode | Air Brake |
| 14 | Max Speed(km/h) | 89 |
| 15 | Front/Rear Overhang(mm) | 1335/2115 |
| 16 | Tire Model | 295/80R22.5 16PR,295/80R22.5 18PR |

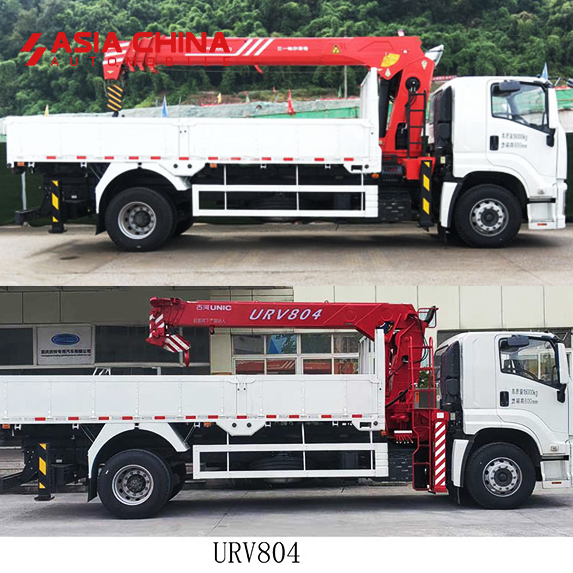

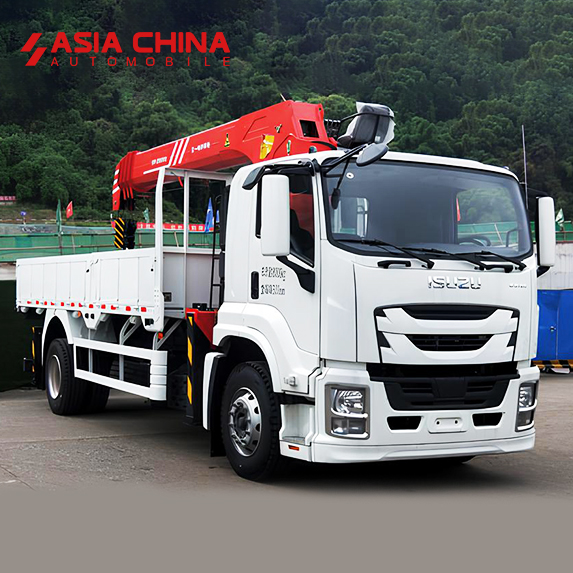

| 17 | Product Description | Isuzu truck-mounted crane with hydraulic arms, outriggers, and rotating base. Ideal for lifting and transporting heavy goods efficiently on-site. |
*More parameters can be customised, please contact us for more information.
