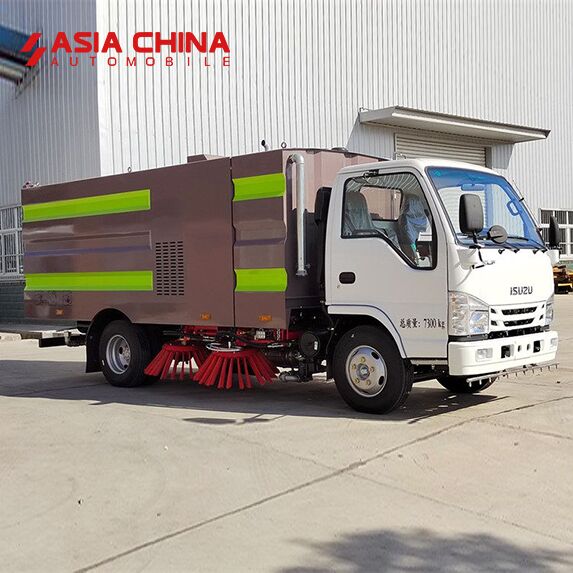

| Isuzu Road Sweeper Truck | |||
| NO. | SPECIFICATION | PARAMETER | |
| 4×2 | |||
| 1 | Model Series | 100P/600P | 700P |
| 2 | Vehicle Model | QL5070TSLBUKAJ | QL5110TSLANMAJ |
| 3 | GVW(kg) | 7300 | 10550 |
| 4 | Curb Weight(kg) | 5690,5800 | 8050 |
| 5 | Axle Loads(kg) | 2580/4720 | 3500/7050 |
| 6 | Cabin | 2 | 3 |
| 7 | Overall Dimension(mm) | 6315×2025×2410 | 6990×2250×2685 |
| 8 | Wheelbase(mm) | 3815 | 4475 |
| 9 | Engine | 4KH1N6MD | 4HK1-TCG61 |
| 10 | Engine Output (kW(PS)) | 103kW(140PS) | 139kW(190PS) |
| 11 | Displacement(L) | 2.999 | 5.193 |
| 12 | Emission Standard | Euro 6 | Euro 6 |
| 13 | Braking Mode | Air Brake | Air Brake |
| 14 | Max Speed(km/h) | 95 | 110 |
| 15 | Front/Rear Overhang(mm) | 1015/1485 | 1110/1405 |
| 16 | Tire Model | 7.00R16LT 14PR | 235/75R17.5 16PR, 8.25R20 14PR |
| 17 | Product Description | The vehicle is equipped with special devices such as side brushes, suction ports, water tanks, etc., mainly used for urban road cleaning and road sweeping. | The vehicle is equipped with special devices such as side brushes, fans, and suction ports, and is mainly used for cleaning and maintaining urban roads. |
*More parameters can be customised, please contact us for more information.
