| Isuzu Tow Truck with Flatbed and Wheel Lift | ||||
| NO. | SPECIFICATION | PARAMETER | ||
| 4×2 | ||||
| 1 | Model Series | M100/KV100 | ||
| 2 | Chassis Model | QL1073BUKAY | ||
| 3 | GVW(kg) | 7300 | ||
| 4 | Curb Weight(kg) | 5395 | ||
| 5 | Axle Loads(kg) | 2580/4720 | ||
| 6 | Cabin | 3 | ||
| 7 | Overall Dimension(mm) | 7340,7400×2320,2420×2280,2320 | ||
| 8 | Wheelbase(mm) | 3815 | ||
| 9 | Engine | 4KH1CN6LB | 4KB1-TCG60 | 4KH1N6MD |
| 10 | Engine Output (kW(PS)) | 88kW(120PS) | 96kW(130PS) | 103kW(140PS) |
| 11 | Displacement(L) | 2.999 | 2.499 | 2.999 |
| 12 | Emission Standard | Euro 6 | ||
| 13 | Braking Mode | Air Brake/Oil Brake | ||
| 14 | Max Speed(km/h) | 95 | ||
| 15 | Front/Rear Overhang(mm) | 1110/2415,1110/2475 | ||
| 16 | Tire Model | 7.00R16LT 14PR,7.00-16LT 14PR | ||

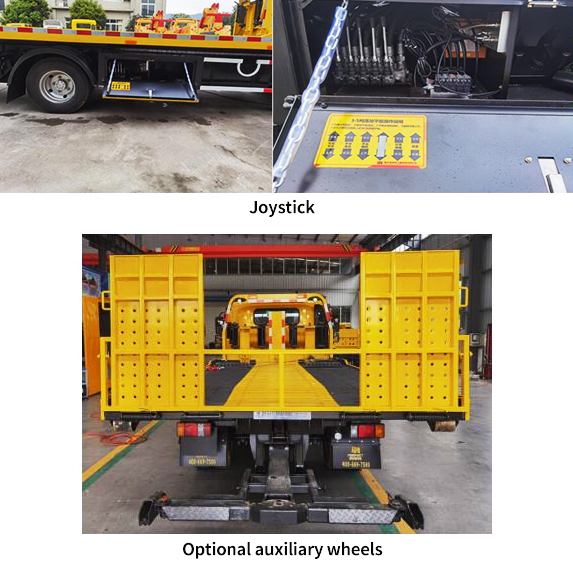

| 17 | Product Description | Isuzu tow truck equipped with wheel lift, flatbed, and winch. Designed for vehicle recovery, breakdown rescue, and urban traffic enforcement. | ||
*More parameters can be customised, please contact us for more information.
