| Isuzu Motorhome | |||||||||
| NO. | SPECIFICATION | PARAMETER | |||||||
| 4×2 | |||||||||
| 1 | Model Series | KV100 | KV100/M100 | KV600/M600 | 700P | ||||
| 2 | Vehicle Model | QL5043XLJBUHAJ | QL5044XLJBUHAJ | QL5044XLJBUHAJ | QL5050XLJBUHAJ | QL5070XLJCNKAJ | QL5071XLJCNKAJ | QL5060XLJANHAJ | QL5070XLJANHAJ |
| 3 | GVW(kg) | 4495 | 4495 | 4495 | 5145 | 7350 | 7450 | 5845 | 6800 |
| 4 | Curb Weight(kg) | 4080 | 4080 | 4080 | 4700 | 6850 | 6950 | 5400 | 6450 |
| 5 | Rated Passenger Capacity | 3-6 | |||||||
| 6 | Overall Dimension(mm) | 5995×2320×3150 | 5995×2405,2290×3330 | 5995×2405,2290×3330 | 5995×2440,2530×3390 | 5995×2380×3270,3190 | 5995×2400,2500×3520,3380,3280 | 5995×2440,2530×3340 | 5995×2260×3165 |
| 7 | Wheelbase(mm) | 3365 | 3365 | 3365 | 3815 | 3360 | |||
| 8 | Engine | 4KH1CN6LB | 4KH1CN6LB | 4KH1CN6HB | 4HK1-TCG61 | ||||
| 9 | Engine Output (kW(PS)) | 88kW(120PS) | 88kW(120PS) | 97kW(132PS) | 139kW(190PS) | ||||
| 10 | Displacement(L) | 2.999 | 2.999 | 2.999 | 5.193 | ||||
| 11 | Emission Standard | Euro 6 | |||||||
| 12 | Braking Mode | Air Brake | |||||||
| 13 | Max Speed(km/h) | 105 | 105 | 105 | 124 | 110 | 110 | 110 | |
| 14 | Front/Rear Overhang(mm) | 1120/1510 | 1120/1510 | 1120/1510 | 1110/1070 | 1110/1070 | 1110/1525 | 1110/1525 | |
| 15 | Tire Model | 7.00R16LT 8PR | 7.00R16LT 8PR,7.50R16LT 6PR | 7.00R16LT 8PR,7.50R16LT 6PR | 7.50R16LT 14PR | 235/75R17.5 16PR,8.25R20 14PR | 235/75R17.5 16PR,8.25R20 14PR | 235/75R17.5 16PR,245/70R19.5 16PR | 235/75R17.5 16PR |

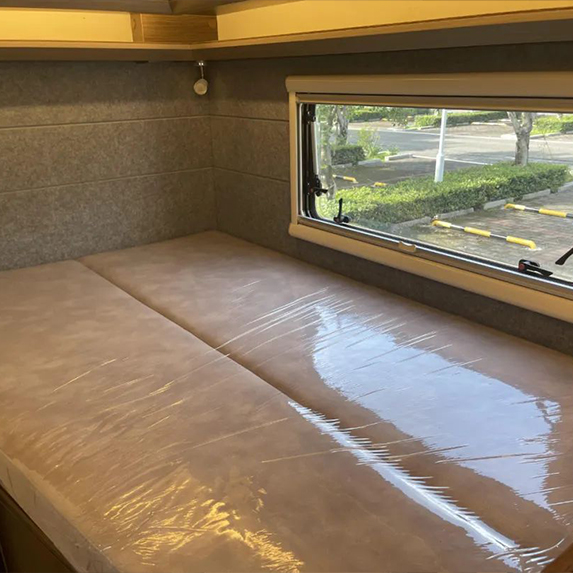

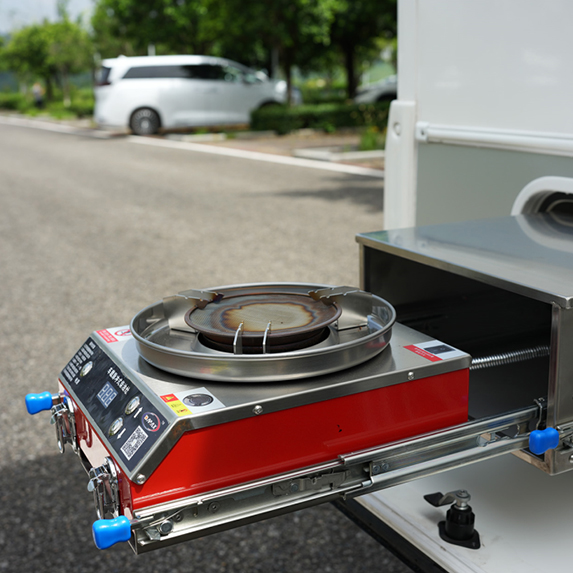

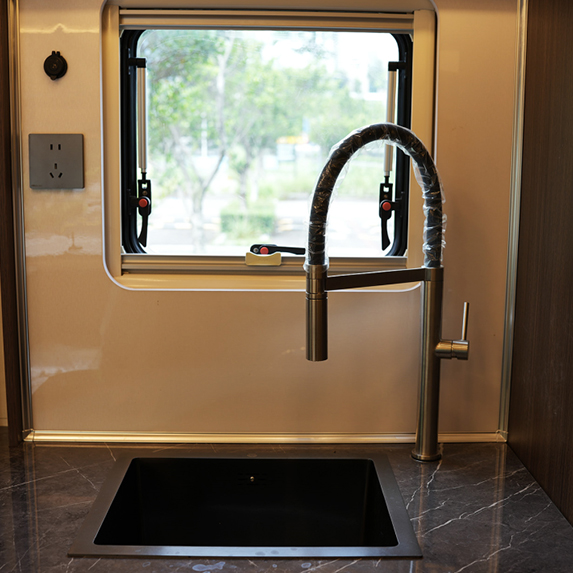

| 16 | Product Description | The vehicle is equipped with tables and chairs, kitchen utensils, bedding, sanitary facilities and other travel living facilities. | |||||||
*More parameters can be customised, please contact us for more information.
