| Isuzu Engineering Truck | ||
| NO. | SPECIFICATION | PARAMETER |
| 4×2 | ||
| 1 | Model Series | KV100 |
| 2 | Vehicle Model | QL5040XGCBUHAJ |
| 3 | GVW(kg) | 4495 |
| 4 | Curb Weight(kg) | 3300 |
| 5 | Axle Loads(kg) | 1750/2745 |
| 6 | Cabin | 6-9 |
| 7 | Overall Dimension(mm) | 5995×2010×2610,2870 |
| 8 | Wheelbase(mm) | 3360 |
| 9 | Engine | 4KH1CN6LB/4KB1-TCG60 |
| 10 | Engine Output (kW(PS)) | 88kW(120PS)/96kW(130PS) |
| 11 | Displacement(L) | 2.999/2.499 |
| 12 | Emission Standard | Euro 6 |
| 13 | Braking Mode | Oil Brake/Air Brake |
| 14 | Max Speed(km/h) | 105, 115 |
| 15 | Front/Rear Overhang(mm) | 1110/1525 |
| 16 | Tire Model | 7.00R16LT 8PR |

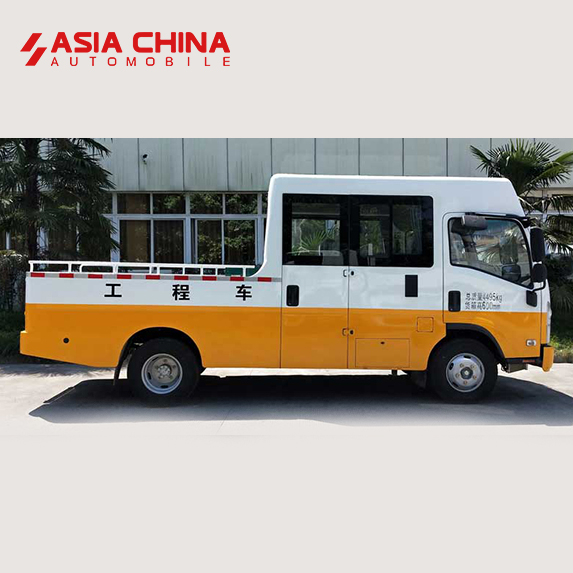

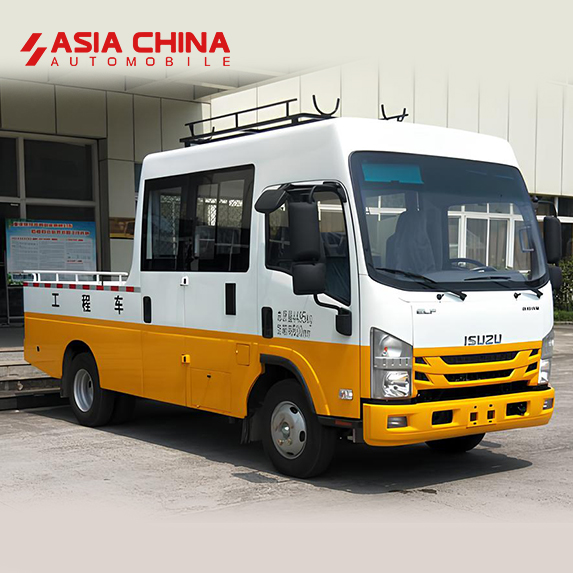

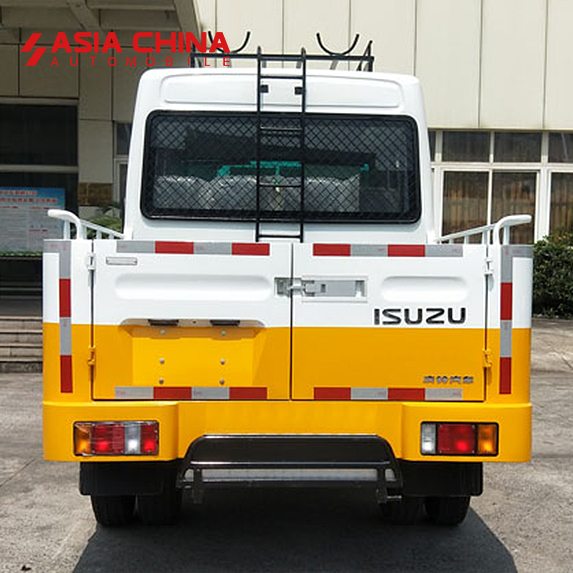

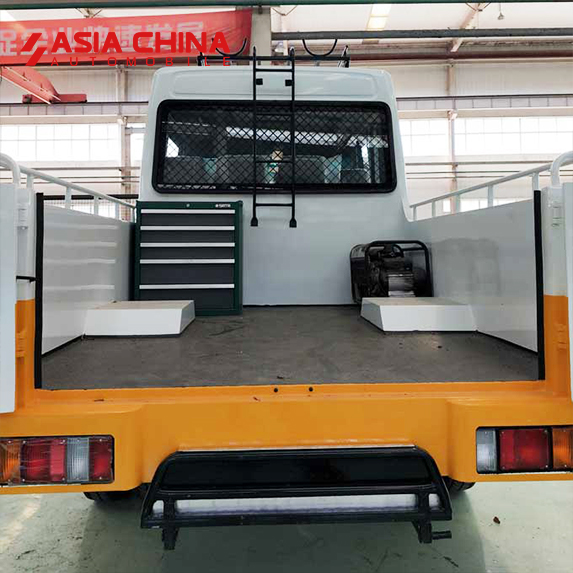

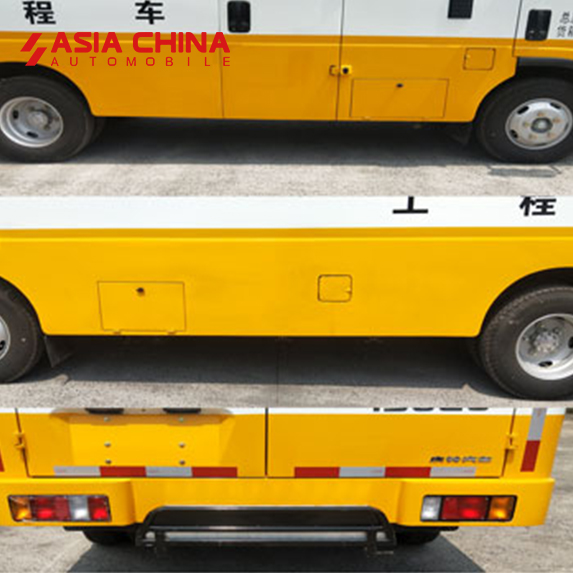

| 17 | Product Description | Isuzu engineering truck is equipped with a portable tool box, air pump and other special devices, and is used for engineering rescue operations. Reliable construction vehicles for diverse engineering and infrastructure projects, customizable and high performance. |
*More parameters can be customised, please contact us for more information.
