| Ankai G-Series Diesel Bus | ||
| NO. | SPECIFICATION | PARAMETER |
| 1 | Model | HFF6730G7D6 |
| 2 | Body Structure | Semi-Integral |
| 3 | Standard Seating Capacity | 51/13-26 |
| 4 | Fuel Type | Diesel |
| 5 | Overall Dimension (mm) | 7280×2250×2895,2995 |
| 6 | Gross Vehicle Weight (kg) | 9000 |
| 7 | Curb Weight (kg) | 4950,5250,5510 |
| 8 | Wheelbase (mm) | 3900 |
| 9 | Wheel Track (Front/Rear) (mm) | 1890,1905/ 1650,1670 |
| 10 | Front/Rear Overhang (mm) | 1020/2360 |
| 11 | Maximum Speed (km/h) | 69 |
| 12 | Engine | YCY24140-60 |
| 13 | Transmission | 5DSX50T |
| 14 | Engine Output (kW(PS)) | 103kW(140PS) |
| 15 | Displacement (L) | 2.360 |
| 16 | Emission Standard | Euro 6 |
| 17 | Suspension System | 3/4-Leaf Spring Suspension |
| 18 | Braking System | Dual-circuit air brake system with front & rear disc brakes |
| 19 | Tire Specification | 215/75R17.5 |
| 20 | Air Conditioning | Roof A/C, 14 kW capacity |
| 21 | Passenger Door | Accordion Door |

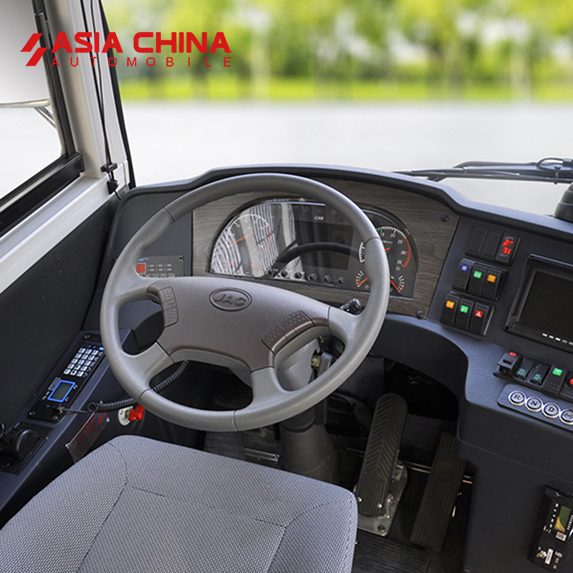

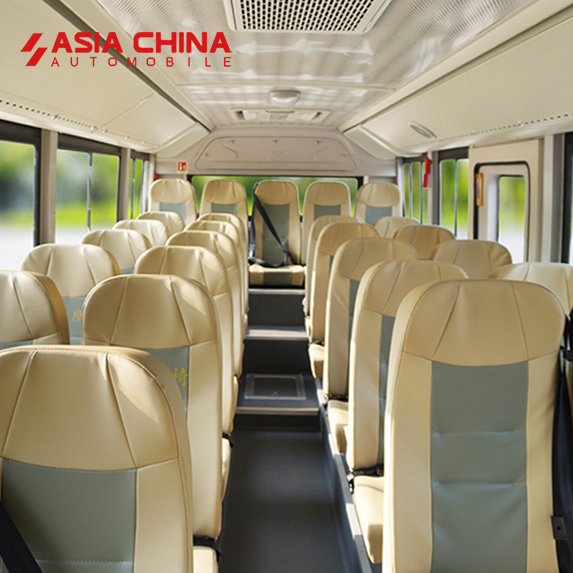

| 22 | Core Highlights | ✅ Compact & Agile - Short overhangs and narrow body for superior maneuverability. Ideal for navigating tight urban streets and village roads. ✅ Smart Cockpit - Ergonomic driver's area for intuitive control. ✅ Riding Comfort - Padded seats and a quiet, comfortable cabin. |
*More parameters can be customised, please contact us for more information.
