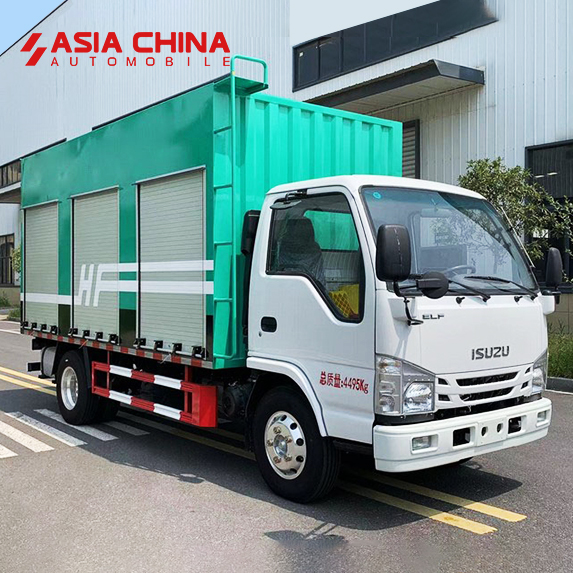

| Isuzu Sludge Treatment Truck | |||||
| NO. | SPECIFICATION | PARAMETER | |||
| 4×2 | |||||
| 1 | Model Series | 100P/600P | |||
| 2 | Chassis Model | QL1040BUHACY | |||
| 3 | GVW(kg) | 4495 | |||
| 4 | Curb Weight(kg) | 4365 | |||
| 5 | Axle Loads(kg) | 1805/2690 | |||
| 6 | Cabin | 2 | |||
| 7 | Overall Dimension(mm) | 5910×2000,2080×3020 | |||
| 8 | Wheelbase(mm) | 3360,2800 | |||
| 9 | Engine | 4KH1CN6LB | 4KB1-TCG60 | 4KK1N6LB | 4KK1N6SD |
| 10 | Engine Output (kW(PS)) | 88kW(120PS) | 96kW(130PS) | 88kW(120PS) | 97kW(132PS) |
| 11 | Displacement(L) | 2.999 | 2.499 | ||
| 12 | Emission Standard | Euro 6 | |||
| 13 | Braking Mode | Air Brake/Oil Brake | |||
| 14 | Max Speed(km/h) | 105,115 | |||
| 15 | Front/Rear Overhang(mm) | 1015/1535 | |||
| 16 | Tire Model | 7.00R16LT 8PR,6.50R15LT 10PR,6.50R16LT 10PR | |||
| 17 | Product Description | Isuzu sludge treatment truck designed for urban drainage maintenance, sludge suction, screening, and transportation. Reliable for sewer and manhole cleaning operations. | |||
*More parameters can be customised, please contact us for more information.
