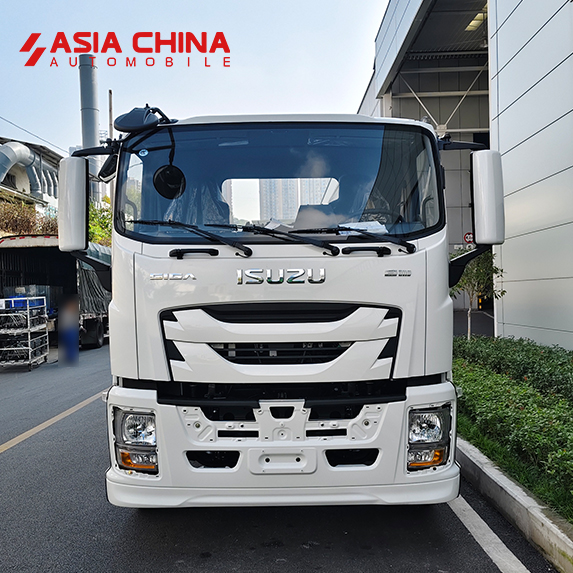

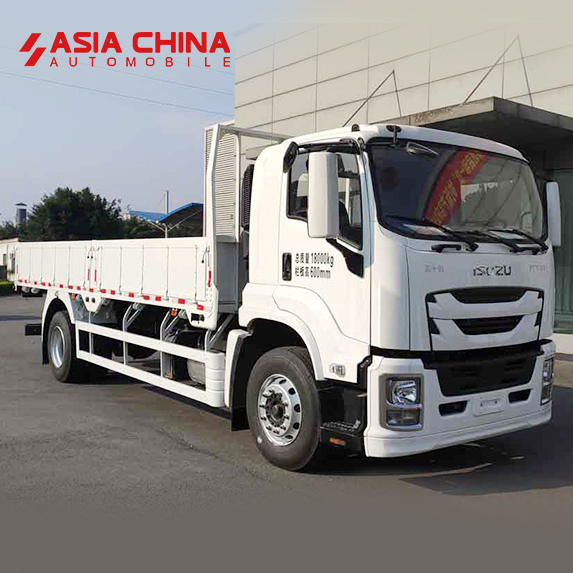

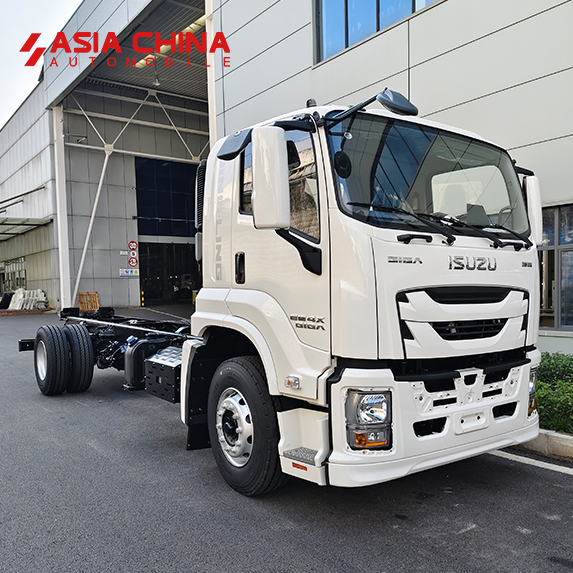

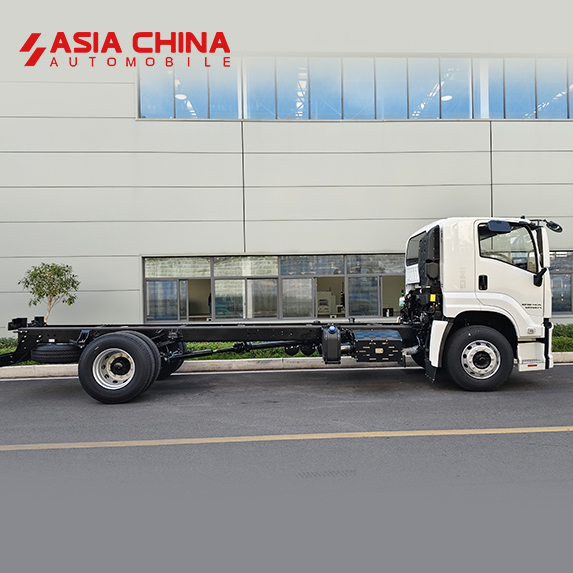

| Qingling Isuzu FTR Dropside Truck | |||
| NO. | SPECIFICATION | PARAMETER | |
| 4×2 | |||
| 1 | Vehicle Model | QL1180JQFR | |
| 2 | GVW(kg) | 18000 | |
| 3 | Curb Weight(kg) | 7155, 6625 | |
| 4 | Axle Loads(kg) | 6500/11500 | |
| 5 | Cabin | 3 | |
| 6 | Overall Dimension(mm) | 9000×2530×3000 | |
| 7 | Wheelbase(mm) | 5550 | |
| 8 | Engine | 4HK1-TCG60 | 4HK1-TCG62 |
| 9 | Engine Output (kW(PS)) | (151kW)205PS | (165kW)225PS |
| 10 | Displacement(L) | 5.193 | |
| 11 | Emission Standard | Euro 6 | |
| 12 | Braking Mode | Air Brake | |
| 13 | Max Speed(km/h) | 105 | |
| 14 | Front/Rear Overhang(mm) | 1335/2115 | |
| 15 | Tire Model | 295/80R22.5 16PR, 295/80R22.5 18PR | |
*More parameters can be customised, please contact us for more information.
