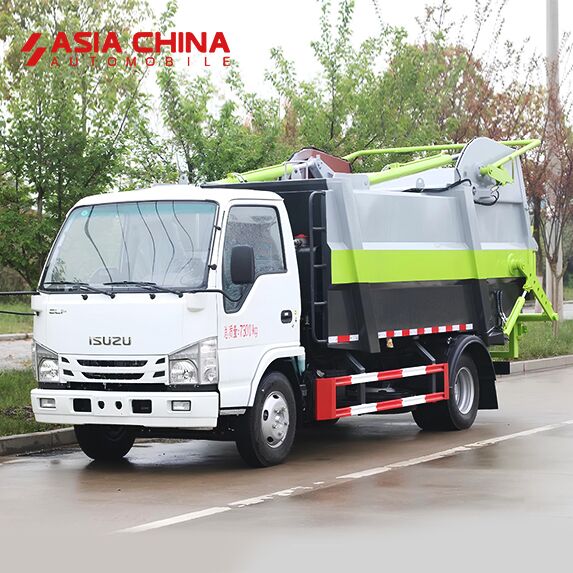

| Isuzu Waste Compactor Truck | ||
| NO. | SPECIFICATION | PARAMETER |
| 4×2 | ||
| 1 | Model Series | 100P/600P |
| 2 | Vehicle Model | QL5070ZYSBUHAJ |
| 3 | GVW(kg) | 7300 |
| 4 | Curb Weight(kg) | 5100 |
| 5 | Axle Loads(kg) | 2070 |
| 6 | Cabin | 2 |
| 7 | Overall Dimension(mm) | 6630×2030×2400 |
| 8 | Wheelbase(mm) | 3360 |
| 9 | Engine | 4KH1N6MD |
| 10 | Engine Output (kW(PS)) | 103kW(140PS) |
| 11 | Displacement(L) | 2.999 |
| 12 | Emission Standard | Euro 6 |
| 13 | Braking Mode | Air Brake |
| 14 | Max Speed(km/h) | 95 |
| 15 | Front/Rear Overhang(mm) | 1015/1855 |
| 16 | Tire Model | 7.00R16LT 14PR |
| 17 | Product Description | The vehicle achieves the functions of garbage collection, loading and transportation through the garbage bin, loading mechanism, loader, hydraulic system and electrical control system. |
*More parameters can be customised, please contact us for more information.
