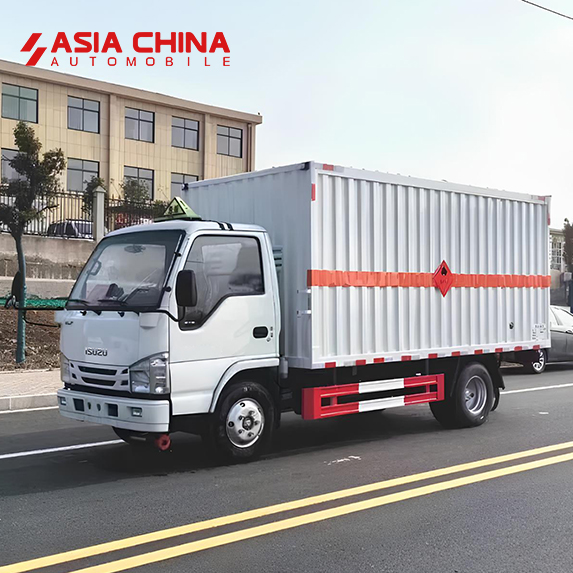

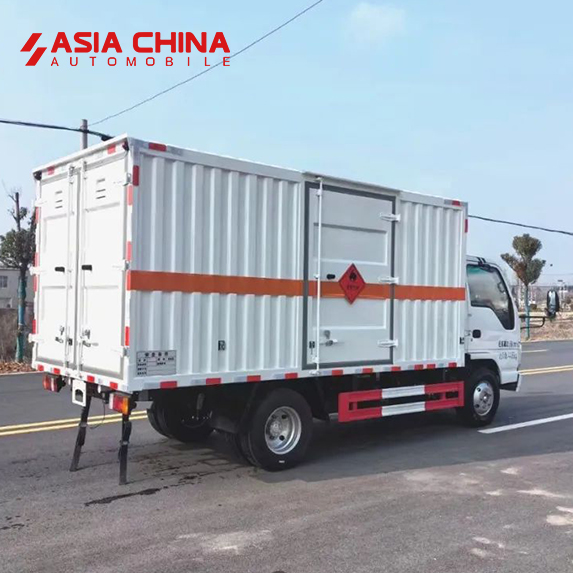

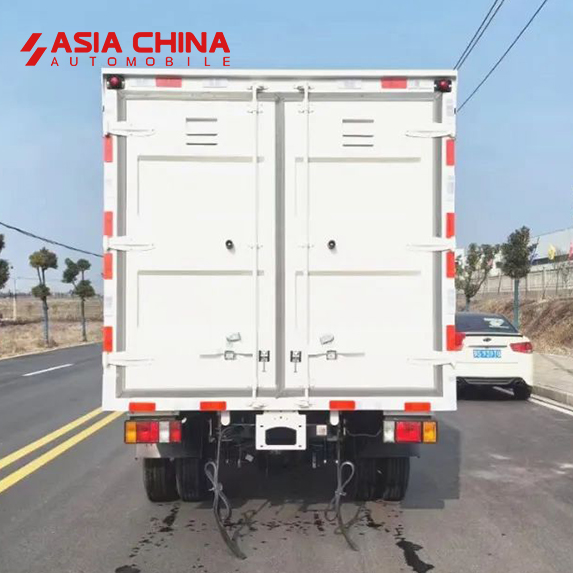

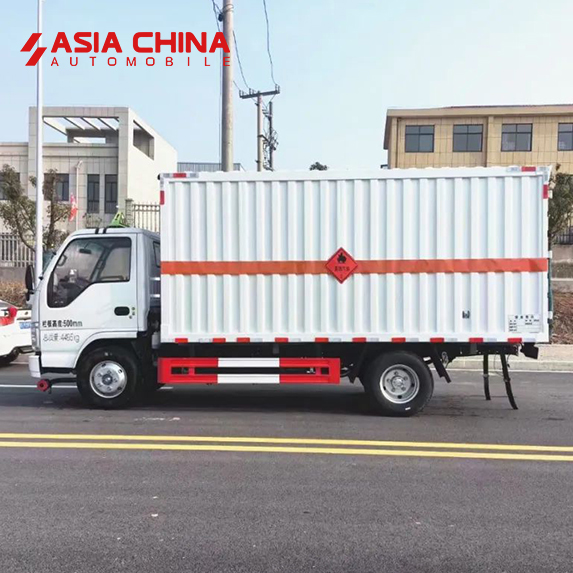

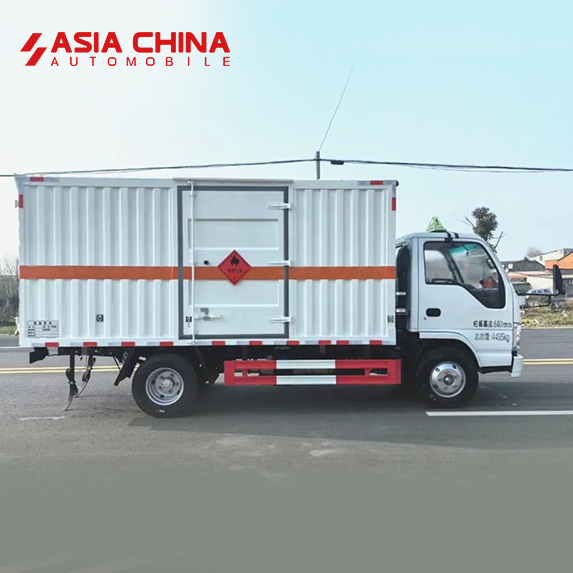

| Isuzu Flammable Gas Transport Van Truck | |||||
| NO. | SPECIFICATION | PARAMETER | |||
| 4×2 | |||||
| 1 | Model Series | KV100 | 100P | ||
| 2 | Vehicle Model | QL5080XRQBUKAJ | QL5042XRQMVHAJ | QL5040XRQMVHAJ | QL5040XRQMVFAJ |
| 3 | GVW(kg) | 8280 | 4495 | 4495 | 4495 |
| 4 | Curb Weight(kg) | 4100 | 3350 | 3250 | 2950 |
| 5 | Axle Loads(kg) | 3000/5280 | 1750/2745 | 1805/2690 | 1700/2795 |
| 6 | Cabin | 3 | 3 | 2 | 2 |
| 7 | Overall Dimension(mm) | 7020×2220×3195 | 5995×2130×3100 | 5995×2110×2825 | 5300×1910×2710 |
| 8 | Box Dimension(mm) | 5175×2150×2150 | 4130×2050×2100 | 4230×2010×1840 | 3600×1810,1850×1750,1810,1540 |
| 9 | Wheelbase(mm) | 3815 | 3365 | 3360 | 2795 |
| 10 | Engine | 4KH1CN6LB | 4KK1N6SD | 4KK1N6SD | 4KK1N6SD |
| 11 | Engine Output (kW(PS)) | 88kW(120PS) | 97kW(132PS) | 97kW(132PS) | 97kW(132PS) |
| 12 | Displacement(L) | 2.999 | 2.499 | 2.499 | 2.499 |
| 13 | Emission Standard | Euro 6 | Euro 6 | Euro 6 | Euro 6 |
| 14 | Braking Mode | Air Brake | Air Brake | Oil Brake | Oil Brake |
| 15 | Max Speed(km/h) | 80 | 80 | 80 | 80 |
| 16 | Front/Rear Overhang(mm) | 1120/2085 | 1120/1510 | 1015/1620 | 1015/1490 |
| 17 | Tire Model | 7.50R16LT 14PR | 7.00R16LT 8PR | 7.00R16LT 8PR | 6.50R16LT 10PR,7.00R16LT 8PR |
| 18 | Product Description | The top of the compartment is closed and cannot be opened. This vehicle is a dangerous goods transport vehicle; it transports goods packed in independent containers (bottles). The curb weight includes spare tires, fire extinguishers, and on-board tools. The vehicle is equipped with a driving recorder with satellite positioning function. | |||
*More parameters can be customised, please contact us for more information.
