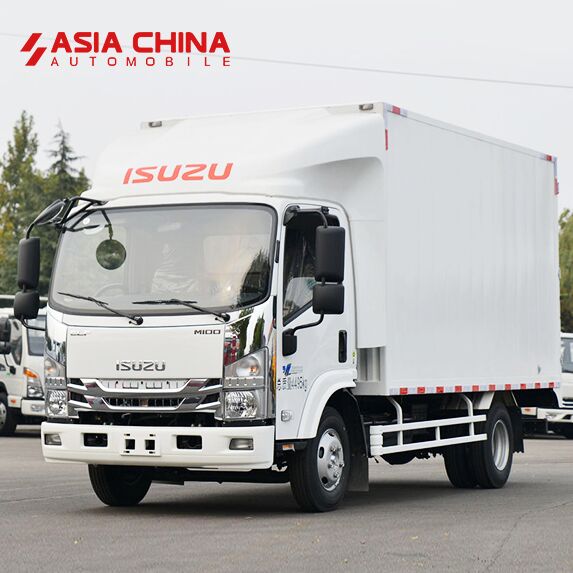

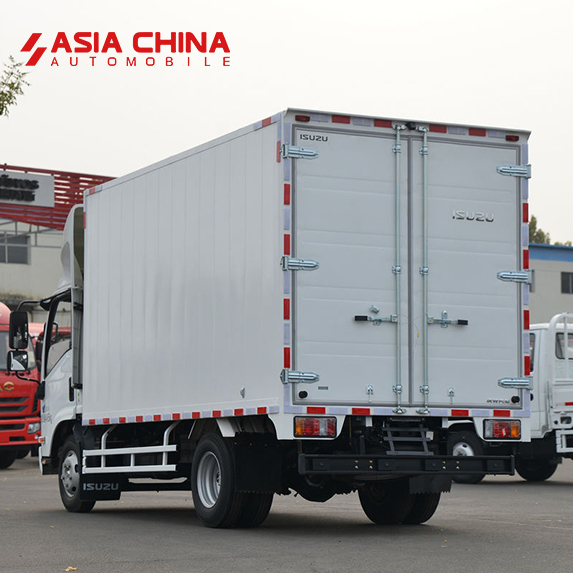

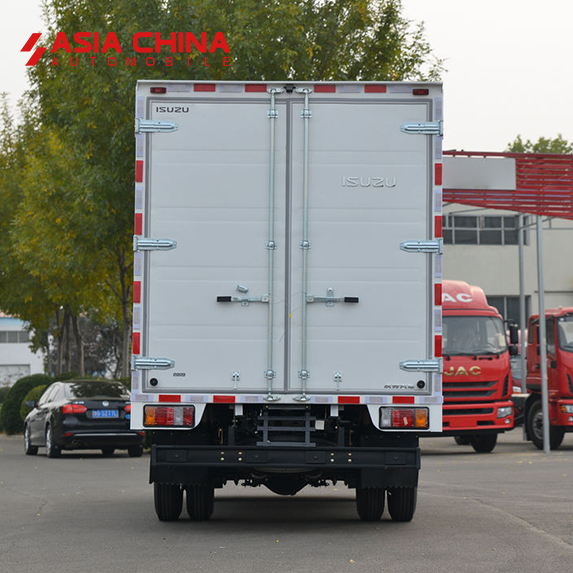

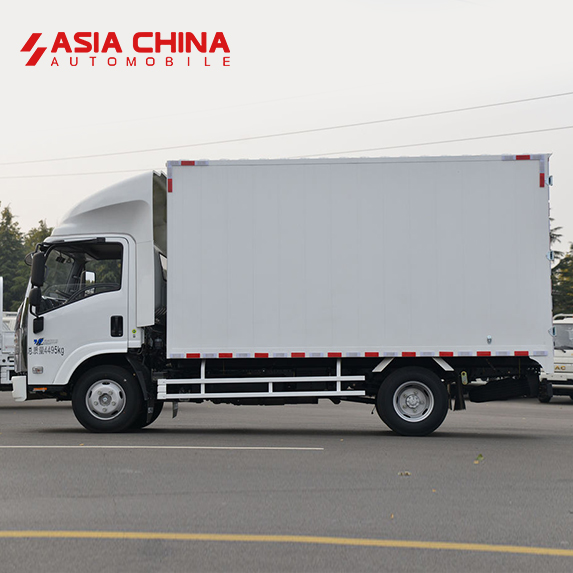

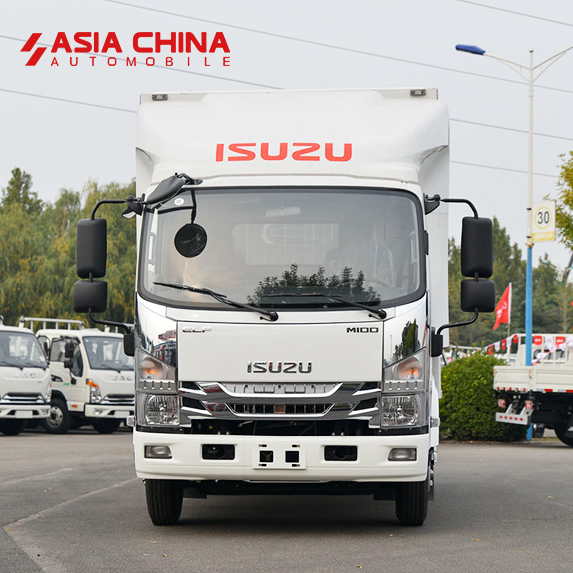

| Qingling Isuzu M100 Cargo Truck | |||||||
| NO. | SPECIFICATION | PARAMETER | |||||
| 4×2 | |||||||
| 1 | Vehicle Model | QL5043XXYFMHA | QL5080XXYBUHA | QL5080XXYBUKA | |||
| 2 | GVW(kg) | 4495 | 8280 | 8280 | |||
| 3 | Curb Weight(kg) | 2805 | 3540 | 3830 | |||
| 4 | Axle Loads(kg) | 1495 | 4545 | 4255 | |||
| 5 | Cabin | 3 | |||||
| 6 | Overall Dimension(mm) | 5995×2180×3150 | 5995×2180×3300 | 5995×2210×3210 | 7025×2210×3210 | ||
| 7 | Box Dimension(mm) | 4130×2100×2150 | 4130×2100×2300 | 4130×2150×2150 | 5175×2150×2150 | ||
| 8 | Wheelbase(mm) | 3360 | 3365 | 3815 | |||
| 9 | Engine | 4KB1-TCG60 | 4KH1CN6LB | ||||
| 10 | Engine Output (kW(PS)) | 96KW(130PS) | 88KW(120PS) | ||||
| 11 | Displacement(L) | 2.499 | 2.999 | ||||
| 12 | Emission Standard | Euro 6 | |||||
| 13 | Braking Mode | Oil Brake/Air Brake | Air Brake | ||||
| 14 | Max Speed(km/h) | 115 | 105 | ||||
| 15 | Front/Rear Overhang(mm) | 1110/1525 | 1120/1510 | 1120/2090 | |||
| 16 | Tire Model | 7.00R16LT 8PR | 7.50R16LT 14PR | ||||
| 17 | Transmission Type | MSB-6 | MSB-5MT | ||||
*More parameters can be customised, please contact us for more information.
