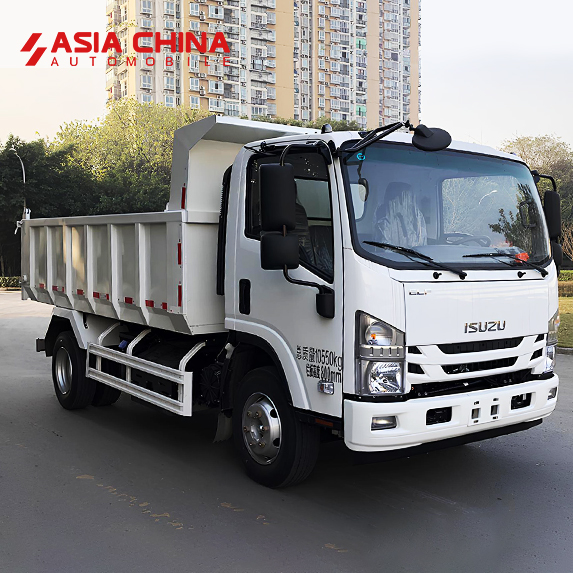

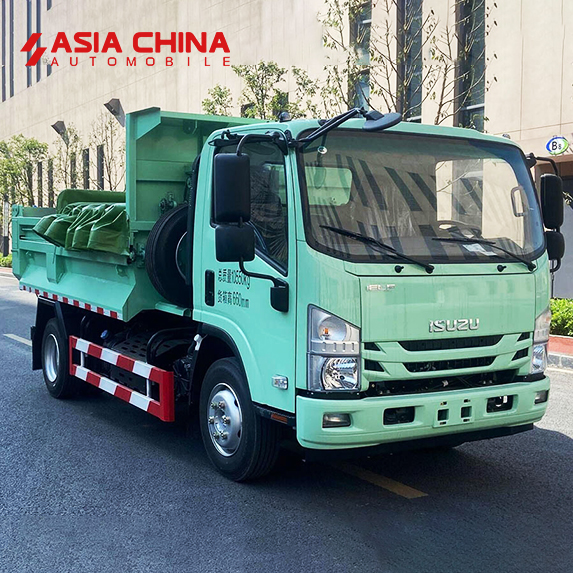

Isuzu 700p Dump Truck

Isuzu 700P Dump Truck

NO.

SPECIFICATION

PARAMETER

4×2

1

Chassis

QL3110ZANHA

QL3110ANHA

2

Gross Vehicle Weight(kg)

10550

10550

3

Kerb Weight(kg)

4500

5300

4

Cabin

ISUZU cab,standard-roof, left-hand drive, single row with Air-conditioner, 3 passengers

5

Overall Dimension(mm)

5800×2335×2480

5925×2300×2480

6

Box Dimension(mm)

3820×2105×800

3400×2100×600

7

Wheelbase(mm)

3360

3360

8

Engine

4HK1-TCG61

4HK1-TCG61

9

Engine Output  (kw(HP))

(139kw)190HP

(139kw)190HP

10

Displacement(L)

5.193

5.194

11

Emission STD

EURO6

EURO6

12

Braking Mode

Air Brake

Air Brake

13

Max speed(km/h)

110

110

14

Front/Rear suspension

1110/1330

1110/1455

15

Gearbox

MLD-6Q

MLD-6Q

16

Tyre&rim

235/75R17.5 16PR

235/75R17.5 16PR
