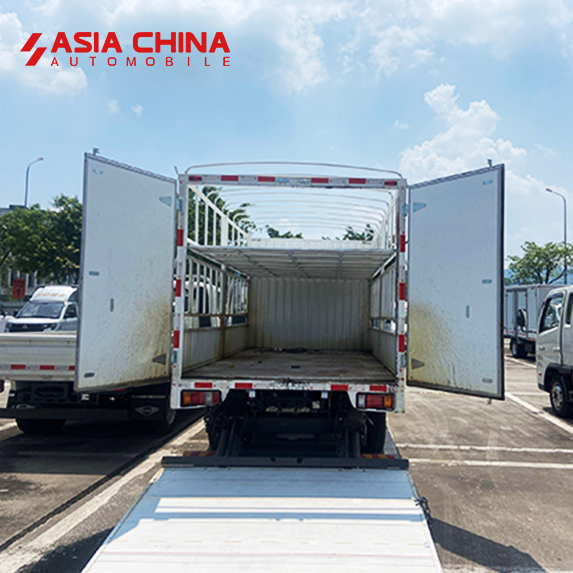

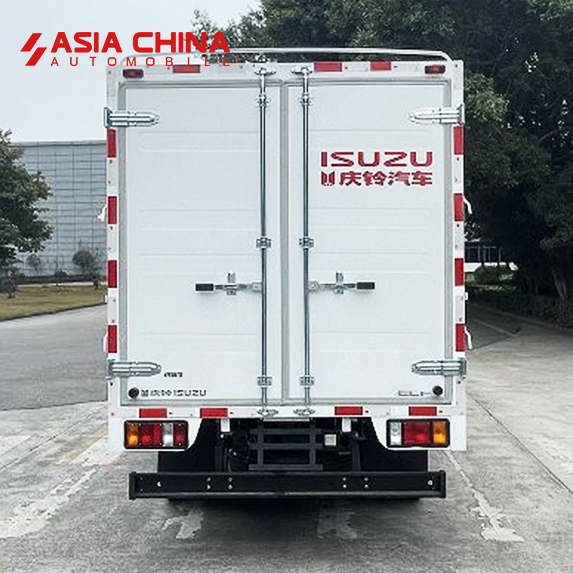

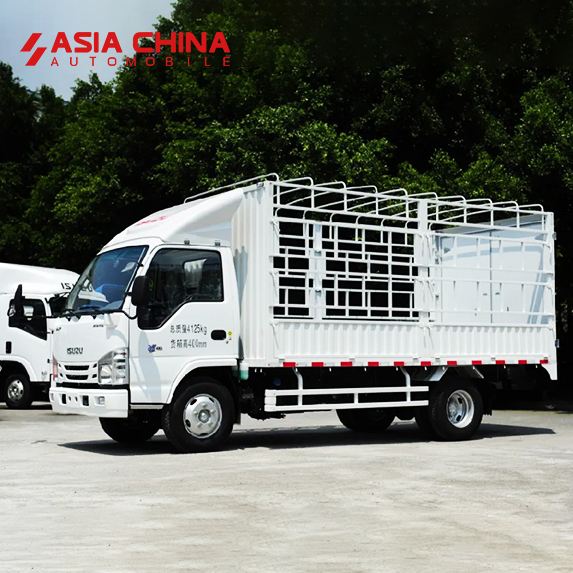

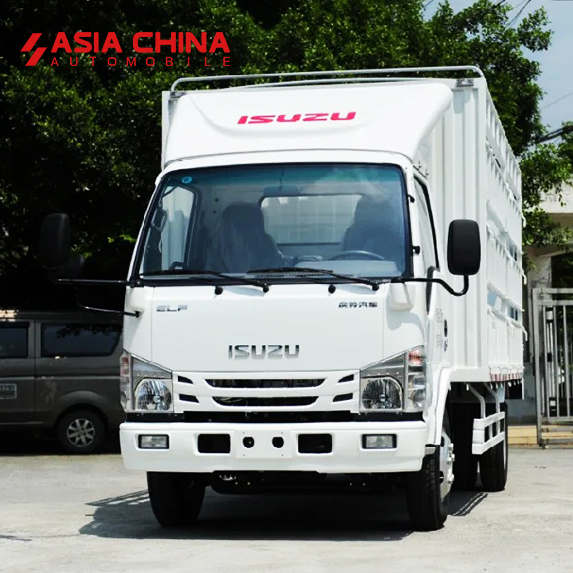

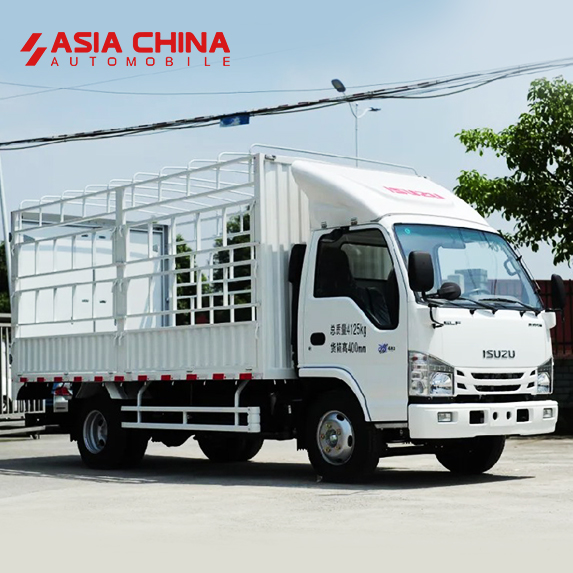

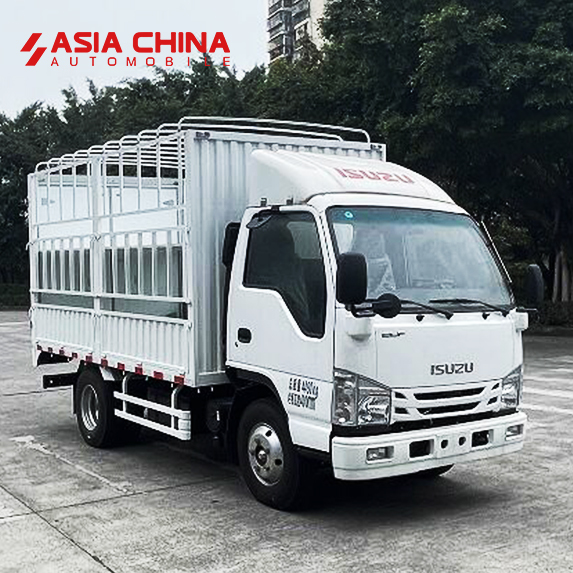

| Isuzu 100P Stake Truck | |||
| NO. | SPECIFICATION | PARAMETER | |
| 4×2 | |||
| 1 | Vehicle Model | QL5041CCYMVHA | QL5040CCYMVHW |
| 2 | GVW(kg) | 4490 | 4495 |
| 3 | Curb Weight(kg) | 2720 | 2720 |
| 4 | Axle Loads(kg) | 1800/2690 | 1730/2765 |
| 5 | Cabin | 2 | 2+3 |
| 6 | Overall Dimension(mm) | 5995,5335×2090×2960 | 5995×1930×2500,2940 |
| 7 | Box Dimension(mm) | 3800,4250,3600×1980×400 | 3245×1850×400 |
| 8 | Wheelbase(mm) | 3360,2800 | 3360 |
| 9 | Engine | 4KB1-TCG60 | 4KK1N6SD/4KB1-TCG60 |
| 10 | Engine Output (kW(PS)) | 96kW(130PS) | 97kW(132PS)96kW(130PS) |
| 11 | Displacement(L) | 2.499 | |
| 12 | Emission Standard | Euro 6 | |
| 13 | Braking Mode | Air Brake/Oil brake | |
| 14 | Max Speed(km/h) | 115 | |
| 15 | Front/Rear Overhang(mm) | 1015/1620,1015/1520 | 1015/1620 |
| 16 | Tire Model | 7.00R16LT 8PR | |
*More parameters can be customised, please contact us for more information.
